Standard: ISO2531, EN545, EN598.
Range: DN100-DN2000
Coating:
internal:
a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
f). Liquid epoxy painting.
e). Black bitumen painting.
external:
a). zinc(130g/㎡)+bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). zinc-aluminum alloy (400g/㎡)+liquid epoxy painting according to customers' requirements.
Accessories: rubber ring (SBR, NBR, EPDM), "T" bolts and nuts, glands.
Packing: wooden cases or pallets.

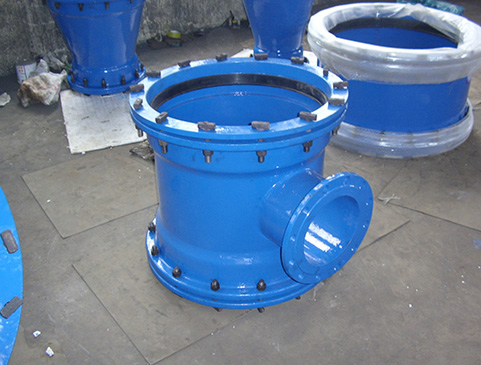

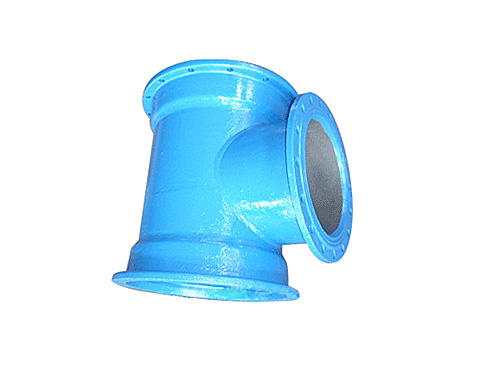

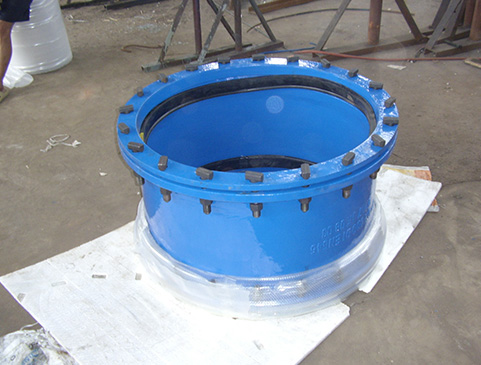

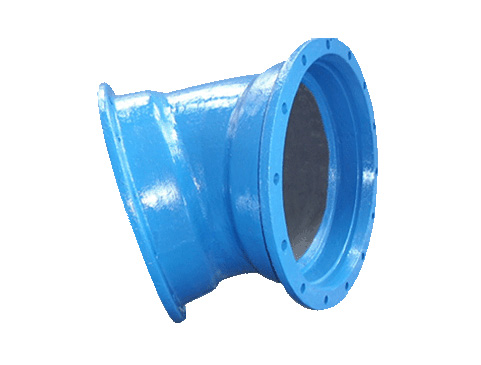

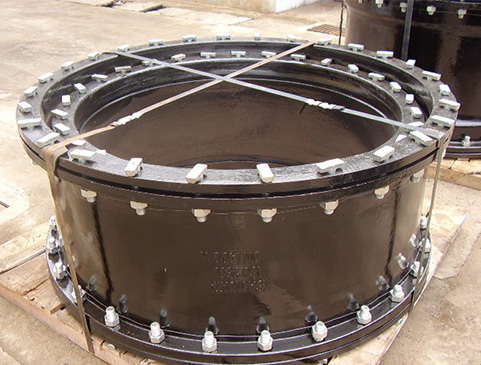

Use: Mechanical joint in which sealing is obtained by applying pressure to the gasket by gland, and permits significant angular deflextion both during and after installation and which can accept a light offset of the centreline.
